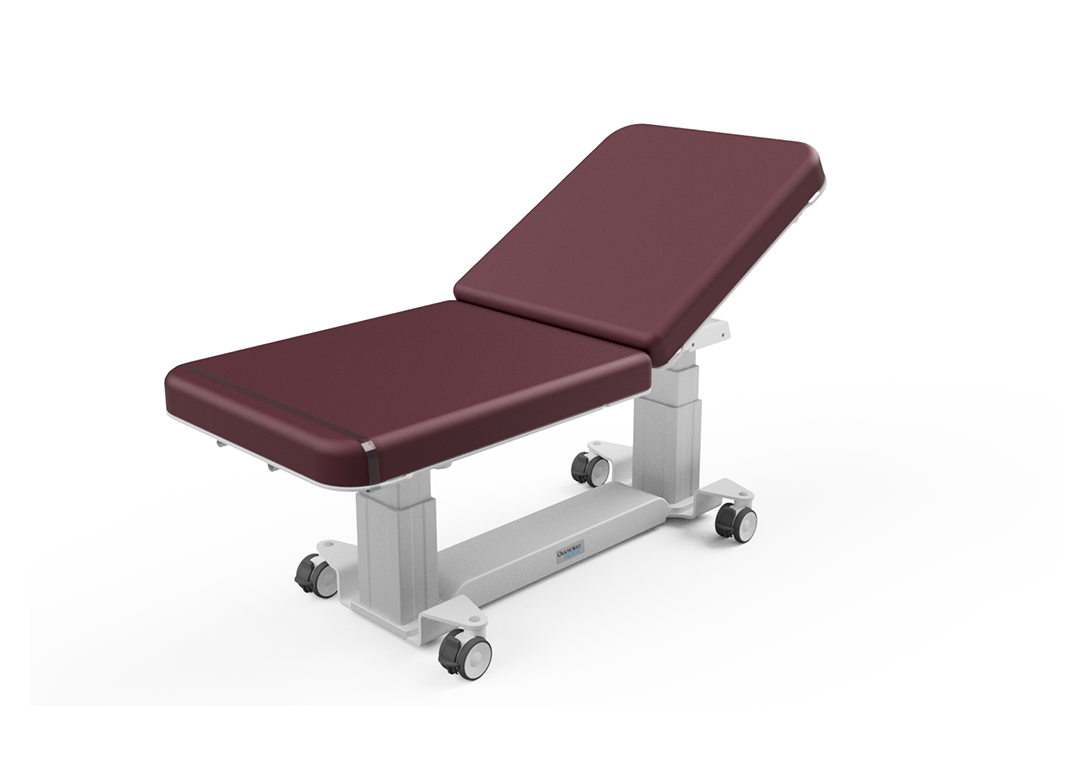

General 2 Section EA Ultrasound Table

MSRP: $4,750.00

Ergonomic Advantage Line Our EA Line of tables incorporates many ergonomic improvements including all motions being powered, shortening exam times, and making positioning patients easier. All tables come fully assembled with all options installed at Oakworks.

ADA 19" low height or 22" - 36" high height
2 section top table with many optional features to customize your needs
Dynamic 19 in. to 33 in. (48-83cm) adjustable height range for safe wheelchair transfer & ergonomic working heights
Twin tower design for added strength & rigidity
Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

Get a quote - (717) 759-3146 or medsales@oakworks.com

Available Fabric Colors

Height

Width

Central Base Locking System

Foot Control

Battery Backup

Side Rails (set of 2)

Stirrups (Retractable Foot Rests)

Procedure Tray

Quantity

Product ID 83901

Included Features
Options
Recommended Accessories
Product Literature & Videos
Images

2 Section Top - 30 in. (76 cm) or 26 in. (66 cm) wide x 72 in. (183 cm) long
Backrest - 34 in. (86 cm) long
Seat - 38 in. (97cm) long
Motion 1 - Electric Height Range: 19" - 33" (48cm-84cm) low height or 22" - 36" (56-91cm) high height
Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
Motion 3 - Electric Fowler Backrest 0-75°
Controls - Multi-function hand control
Weight Capacity - 550lb (250kg)
Product Weight - 359lb (163kg)
Removable Padding System - 3 in. (8cm) Comfort Foam ™
Included Features - 4 in. (10cm) locking casters, Paper roll holder
Warranty - 3 years parts, 2 years labor
Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate

Foot Control - Height, Trendelenburg/Reverse, Fowler, Leg Section (H-T-B)
Non- USA electric system - Please contact us for order details
Side Rails - Set of 2: 25.5” (65cm) long x 6” (15cm) tall(from surface of table)

Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
Detatchable Arm Board - Use w/ T-Rail adapter 5 in. (13cm) wide x 20.5 in. (52cm) long
T-Rail Adapter - 8 in. (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
Table Extender - 24 in. (61cm) wide x 12 in. (30cm) long
QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support
