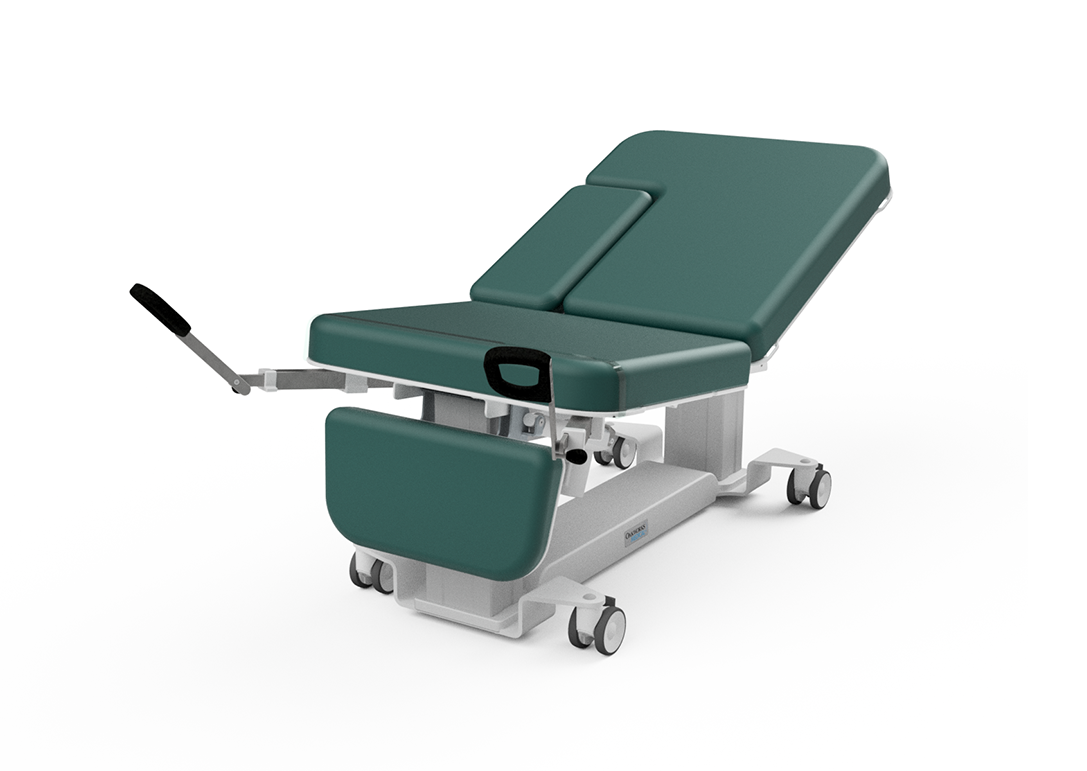

Womens Ultrasound EA Table

MSRP: $7,490.00

Ergonomic Advantage Line Our EA Line of tables incorporates many ergonomic improvements including all motions being powered, shortening exam times, and making positioning patients easier. All tables come fully assembled with all options installed at Oakworks.

ADA 19" low height or 22" - 36" high height
Full featured 3 section table top design for all Women's ultrasound modalities
550 lb (250kg) bariatric rated lift & load capacity
Twin tower design for added strength & rigidity
Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

Get a quote - (717) 759-3146 or medsales@oakworks.com

Available Fabric Colors

Height

Central Base Locking System

Foot Control

Battery Backup

Side Rails (set of 2)

Procedure Tray

Quantity

Product ID 84472

Included Features
Options
Recommended Accessories
Product Literature & Videos
Images

3 Section Top - 30 in. (76 cm) wide x 72 in. (183 cm) long
Backrest - 34 in. (86 cm) long
Seat - 26 in. (66cm) long
Leg Rest - 11 in. (28cm) long
Motion 1 - Electric Height Range: 19" - 33" (48cm-84cm) low height or 22" - 36" (56-91cm) high height
Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
Motion 3 - Electric Fowler Backrest 0-75°
Motion 4 - Electric Leg Rest 0-90°
Motion 5 - Access/Back support: Electric 10” wide (25cm) x 22” long (56cm) 0-75° Access/Back support for patient positioning (right side)
Controls - Multi-function hand control
Weight Capacity - 550lb (250kg)
Product Weight - 359lb (163kg)
Removable Padding System - 3 in. (8cm) Comfort Foam ™
Included Features - 4 in. (10cm) locking casters, Adjustable access back support (right) 0-75°, Paper roll holder, Stirrups
Warranty - 3 years parts, 2 years labor
Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate

Foot Control - Height, Trendelenburg, Fowler (H-T-B)
Side Rails - Set of 2: 25.5” (65cm) long x 6” (15cm) tall(from surface of table)

Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
Detatchable Arm Board - Use w/ T-Rail adapter 5 in. (13cm) wide x 20.5 in. (52cm) long
T-Rail Adapter - 8 in. (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
Table Extender - 24 in. (61cm) wide x 12 in. (30cm) long
QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support
