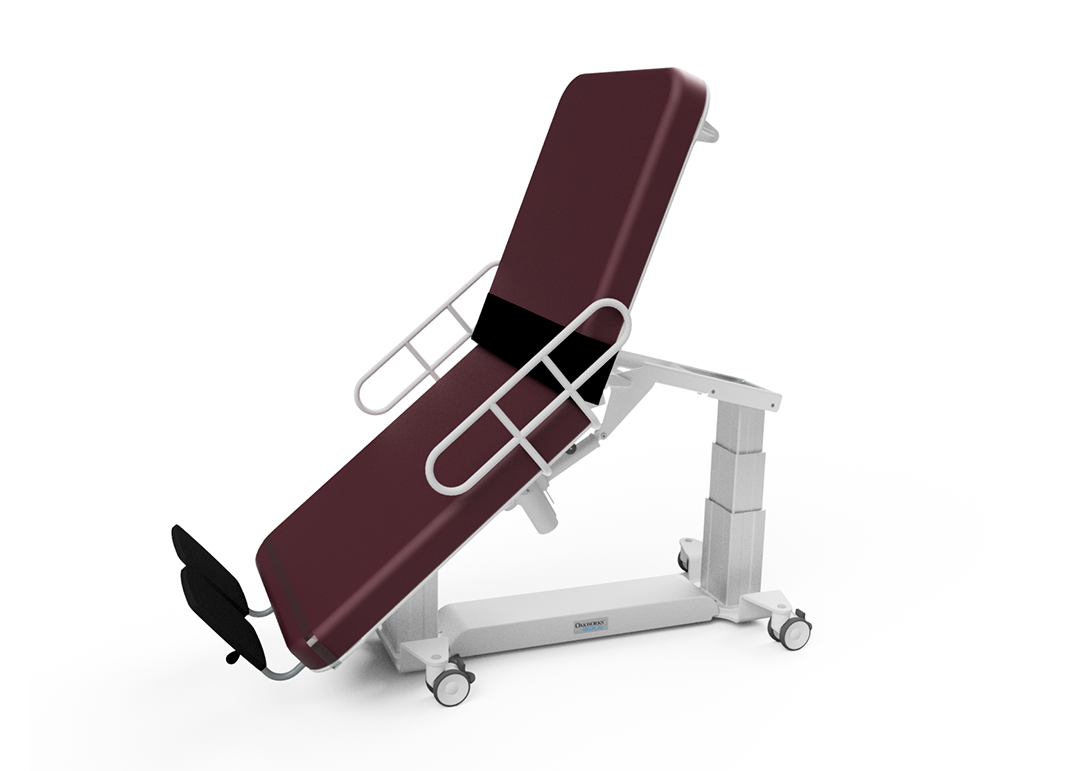

Vascular with Fowler EA Table

MSRP: $7,650.00

Ergonomic Advantage Line Our EA Line of tables incorporates many ergonomic improvements including all motions being powered, shortening exam times, and making positioning patients easier. All tables come fully assembled with all options installed at Oakworks.*

ADA 19" low height or 22" - 36" high height
Dual towers & electric fowler makes 70° reverse Trendelenburg a reality
Safely position clients for Venous Reflux studies
Split foot board design allows non-weight bearing exams and fold down out of the way for carotid artery exams
Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

*Not recommended for tilt testing

Get a quote - (717) 759-3146 or medsales@oakworks.com

Available Fabric Colors

Height

Width

Central Base Locking System

Foot Control

Battery Backup

Cardio Backrest Electric Cardio + Right Access

Quantity

Product ID 83917

Included Features
Options
Recommended Accessories
Product Literature & Videos
Images

2 Section Top - 26 in. (66 cm) or 30 in. (76cm) wide x 72 in. (183 cm) long
Backrest - 34 in. (86 cm) long
Seat - 38 in. (97cm) long
Motion 1 - Electric Height Range: 19" - 33" (48cm-84cm) low height or 22" - 36" (56-91cm) high height
Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
Motion 3 - Electric Additional Reverse Trendelenburg 0-25° (40° total)
Motion 4 - Electric 0-75° Backrest (at 40° max tilt, 70° functional)
Controls - Multi-function hand control
Weight Capacity - 550lb (250kg)
Product Weight - 359lb (163kg)
Removable Padding System - 3 in. (8cm) Comfort Foam ™
Included Features - 4 in. (10cm) locking casters, Paper roll holder, Integrated foot board (split, drop away), Patient safety strap, Side rails (2) 25 in. (64cm) long x 6 in. (15cm) tall (from surface of table)
Warranty - 3 years parts, 2 years labor
Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate

Foot Control - Height, Trendelenburg, Backrest (H-T-B)

Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
Detatchable Arm Board - Use w/ T-Rail adapter 5 in. (13cm) wide x 20.5 in. (52cm) long
T-Rail Adapter - 8 in. (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
Table Extender - 24 in. (61cm) wide x 12 in. (30cm) long
QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support
